• Dimensions L x W x H (mm): 112.35 x 51.65 x 23.4 • Weight: 150g • Chemistry: Li Ion • Operational Time (Hrs) approximately: 22/17 hours (Digital/Analogue - DP4000e Series) 17/12 hours (Digital/Analogue - DP4000 Series) • Capacity (mAh): 2450mAh (Typ) 2300mAh (Min) • Intelligent: NO • No. of Charge cycle: 500 • Energy Density: 2300mAh/135.8cm3 • Operating Temp Range: discharge -10°c to +60°c; charge 0°c to +45°c • IP Rating: IP68 • Memory Effect: No • Requires Maintenance: No • Intrinsic Safety Std: No

Standard Package Includes: Quick start guide QA02440AA Dust cover for side accessory connector PMLN6066A battery, antenna, charger QA02437AA FREQUENCY USE In order to use Motorola Solutions industrial radios, a frequency allocation from a Federal Network Agency is required. For the allocation of frequencies, one-off fees and annual frequency usage fees must be paid to the Federal Network Agency. We will be happy to support you in this process. Please contact us. PROGRAMMING The radios are delivered unprogrammed and unbalanced. To program the radios yourself, you need the programming software and the appropriate data cable. We are happy to offer you individual programming. Please contact us.

Standard Package Includes: Quick start guide QA02440AA Dust cover for side accessory connector PMLN6066A battery, antenna, charger QA02437AA FREQUENCY USE In order to use Motorola Solutions industrial radios, a frequency allocation from a Federal Network Agency is required. For the allocation of frequencies, one-off fees and annual frequency usage fees must be paid to the Federal Network Agency. We will be happy to support you in this process. Please contact us. PROGRAMMING The radios are delivered unprogrammed and unbalanced. To program the radios yourself, you need the programming software and the appropriate data cable. We are happy to offer you individual programming. Please contact us.

COPE OF DELIVERY

• 1 DP4800E handheld radio as a VHF variant, frequency range 136-174 MHz with analog and digital operating mode MDH56JDN9VA1AN FKP PBER302H
• 1 piece battery Li-Ion 2100mAH item number PMNN4491C, QA06102AA
• 1 piece belt clip PMLN4651A or PMLN7008A
• 1 piece single charger with intelligent IMPRES charging technology WPLN4255B, QA02436AA
• 1 piece VHF short stubby antenna (146-160MHz) (PMAD4120A)
• Quick Start Guide QA02440AA
• Dust cover for side accessory connector PMLN6066A
• 5 years of software maintenance & telephone support
• without programming

BATTERY LIFE Average battery life in hours, including 5% transmit, 5% receive and 90% standby with squelch enabled and high transmit power. A distinction is made between analog and digital operating mode. With a purely digital operating mode, a significantly longer runtime is achieved.

• Li-Ion battery PMNN4491B with 2100mAH and intelligent IMPRES charging technology - analogue: 14.5 hours - digital: 19 hours

We recommend using ORIGINAL Motorola Solutions batteries. This is the only way to use all of the radio's functions, achieve the specified battery life and ensure safe and long-term operation of the radio. If an external battery is nevertheless connected, an acoustic warning tone sounds, a message appears on radio devices with a display and the battery level indicator is deactivated. ( from software R2.10 ) IMPRES™ CHARGING TECHNOLOGY Maximize the talk time of your radio with IMPRES™ technology. Through the use of charging algorithms and automatic reconditioning functions, the IMPRES™ Smart Energy System ensures maximum talk time and optimizes battery life. The Smart Energy System automatically reconditions IMPRES batteries based on actual usage, keeping them in top condition. The system only works when IMPRES Multiple and Single Chargers are used with IMPRES Batteries. WEIGHT WITH BATTERY INSTALLED

• NiMH Battery PMNN4412AR with 1400 mAh - 380 g
• Li-Ion battery PMNN4407BR with 16.50mAH and intelligent IMPRES charging technology - 295 g
• Li-Ion battery PMNN4491B with 2100mAH and intelligent IMPRES charging technology - 295 g

ENVIRONMENTAL SPECIFICATIONS Radio operating temperature -30°C / +60°C ( the Li-Ion batteries up to -10ºC and the NiMH battery up to -20ºC ) Resistance to water and dust ingress IEC 60529 - IP68, 2 m for 2 hrs FREQUENCY USE In order to be allowed to use the industrial radios from Motorola Solutions, a frequency assignment from the Federal Network Agency is required. One-off fees and annual frequency usage fees have to be paid to the Federal Network Agency for the allocation of frequencies. We would be happy to support you with this. Contact us. PROGRAMMING The radios are supplied unprogrammed and uncalibrated. In order to program the devices yourself, you need the programming software and the appropriate data cable. We offer both in a set under article number AR482407 .

COPE OF DELIVERY

• 1 DP4801E handheld radio as a VHF variant, frequency range 136-174 MHz with analog and digital operating mode MDH56JDN9VA1AN FKP PBER302H
• 1 piece battery Li-Ion 2100mAH item number PMNN4491C, QA06102AA
• 1 piece belt clip PMLN4651A or PMLN7008A
• 1 piece single charger with intelligent IMPRES charging technology WPLN4255B, QA02436AA
• 1 piece VHF short stubby antenna (146-160MHz) (PMAD4120A)
• Quick Start Guide QA02440AA
• Dust cover for side accessory connector PMLN6066A
• 5 years of software maintenance & telephone support
• without programming

BATTERY LIFE Average battery life in hours, including 5% transmit, 5% receive and 90% standby with squelch enabled and high transmit power. A distinction is made between analog and digital operating mode. With a purely digital operating mode, a significantly longer runtime is achieved.

• Li-Ion battery PMNN4491B with 2100mAH and intelligent IMPRES charging technology – analogue: 14.5 hours – digital: 19 hours

We recommend using ORIGINAL Motorola Solutions batteries. This is the only way to use all of the radio’s functions, achieve the specified battery life and ensure safe and long-term operation of the radio. If an external battery is nevertheless connected, an acoustic warning tone sounds, a message appears on radio devices with a display and the battery level indicator is deactivated. ( from software R2.10 ) IMPRES™ CHARGING TECHNOLOGY Maximize the talk time of your radio with IMPRES™ technology. Through the use of charging algorithms and automatic reconditioning functions, the IMPRES™ Smart Energy System ensures maximum talk time and optimizes battery life. The Smart Energy System automatically reconditions IMPRES batteries based on actual usage, keeping them in top condition. The system only works when IMPRES Multiple and Single Chargers are used with IMPRES Batteries. WEIGHT WITH BATTERY INSTALLED

• Li-Ion battery PMNN4491B with 2100mAH and intelligent IMPRES charging technology – 295 g

ENVIRONMENTAL SPECIFICATIONS Radio operating temperature -30°C / +60°C ( the Li-Ion batteries up to -10ºC and the NiMH battery up to -20ºC ) Resistance to water and dust ingress IEC 60529 – IP68, 2 m for 2 hrs FREQUENCY USE In order to be allowed to use the industrial radios from Motorola Solutions, a frequency assignment from the Federal Network Agency is required. One-off fees and annual frequency usage fees have to be paid to the Federal Network Agency for the allocation of frequencies. We would be happy to support you with this. Contact us. PROGRAMMING The radios are supplied unprogrammed and uncalibrated. In order to program the devices yourself, you need the programming software and the appropriate data cable. We offer both in a set under article number AR482407 .

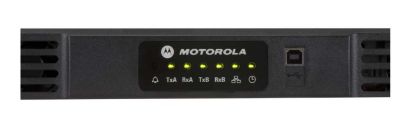

Features • Operates either in analogue or digital mode • Clear LED indicators on front panel indicate operating mode • Repeater disabled • TX/RX status per Slot • Rack or wall-mount • Integrated power Supply • Interface for battery back-up and charge • Repeater Diagnostics and Control • Digital Conventional, IP Site Connect, Capacity Plus, Linked Capacity Plus, Connect Plus, Analog Conventional, MPT 1327 compatible • Application developers kit (to enable 3rd parties to develop applications which interface to the repeater) Standard Package • Rack-mount repeater • Power cable • Standard Warranty is 24 months.
